ED8 Audio Isolation Transformer Ni-Steel Lamination For Microphones​

1.Product Description

ED8 Audio Isolation Transformer.The working frequency range is generally from 10 to 20000Hz. ED8 Audio Isolation Transformer is mainly used for audio signal transmission between systems or between devices. It can completely isolate the potential difference between the two systems, avoid hum interference caused by grounding problems, and prevent damage to the input stage of the device due to excessive potential difference (such as burning out the Audio console or audio processor preamplifier) to achieve safe transmission of audio signals is an essential product for audio system cascading;Widely used in the Internet of Things, microphones, audio, monitoring equipment, conference video, etc.

2.Specificities

1. High isolation performance
Provide electrical isolation, effectively blocking ground loop noise and common mode interference to ensure signal purity.

2. Wide Frequency Response
Support 20Hz-20kHz audio frequency range, covering the audible range of the human ear to ensure clear sound quality.

3. Low Distortion
Adopt high permeability core and high quality winding materials to reduce distortion in signal transmission and maintain the integrity of the audio signal.

4. High signal-to-noise ratio (SNR)
Effectively suppresses noise interference, improves signal-to-noise ratio of signal transmission, and enhances sound quality.

5. Impedance Matching
Provides input and output impedance matching to optimize signal transmission efficiency and reduce signal reflection and loss.

6. Compact Design
The ED8's small size and compact structure make it easy to integrate into various audio devices, saving space.

7. High Reliability
The use of high-quality materials and precision technology ensures stable operation for a long time, suitable for demanding audio applications.

8. Anti-electromagnetic interference (EMI)
Effectively shielding external electromagnetic interference to ensure the purity and stability of signal transmission.

9. Balanced and unbalanced signal conversion
Support the conversion between balanced signals (such as XLR) and unbalanced signals (such as RCA), to adapt to a variety of audio equipment interfaces.

10. low insertion loss
Extremely low loss during signal transmission to ensure signal strength and quality.

11. Temperature Stability
Stable performance over a wide temperature range, suitable for a variety of working environments.

12. Wide application
Suitable for professional audio equipment, broadcasting system, medical equipment, industrial equipment, and high-fidelity (Hi-Fi) sound system.

Ni-Steel Lamination Audio Transformer

Low Frequency Audio Isolation Transformer

ED8 Audio Isolation Transformer

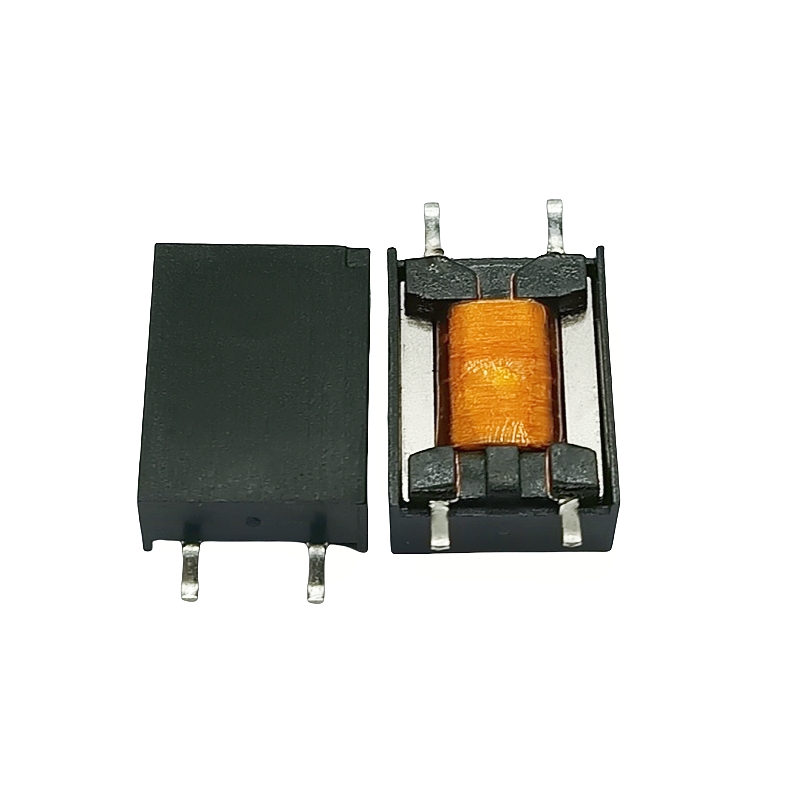

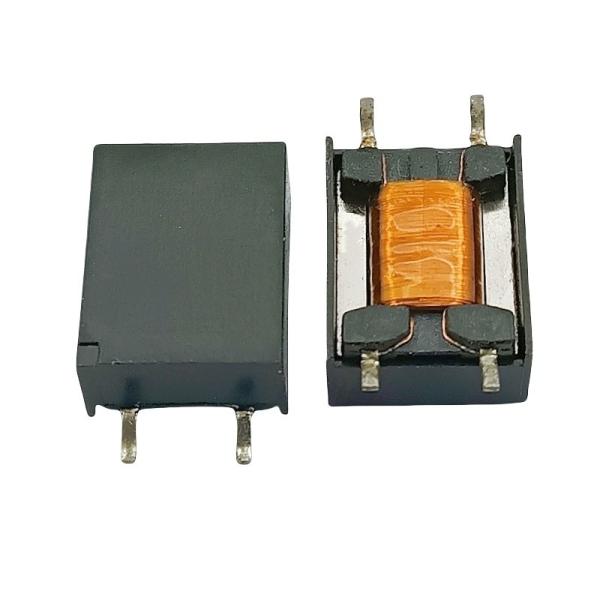

ED8 Audio Isolation Transformer Ni-Steel Lamination For Microphones Images
